SEAFIRST HYDRAULIC STEERING SYSTEM UP TO 90HP
R16,495
SEAFIRST Marine Hydraulic Steering System are designed using industry standard dimensions with the finest materials and manufacturing technology available today – True 100% “Marine Proven” components and materials with added robustness in both shaft and mounting dimensions for the toughest use in both commercial and recreational applications. *D*
- Description
- in the box
Description
HELM PUMP
– Maximum Durability
– SS 304 Shaft
– Lock Valve Inbuilt
– Interconnecting ports (Black plugs) for dual stations of steering
– Common dash hole mount for easy replacement with other brand

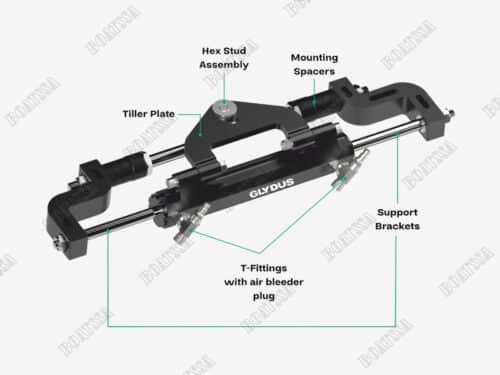

CYLINDER
– Stainless steel shaft with hard chrome plate
– Aluminum tube with anodizing
– Aluminum arms with anodizing
– Stainless steel lock nuts
– Compact Design for less space installation
– Install for single and multi engines
– Balanced cylinder: The number of turns lock to lock is equal port to starboard
SUITABLE FOR OUTBOARD ENGINES:
Yamaha 20HP to 90HP
Honda 30HP to 70HP
Suzuki 20HP to 70HP
Mercury 30HP to 60HP
Tohatsu 30HP to 90HP
Tohatsu 50Hp to 90HP
If steering wheel is rotated in clock wise, oil is pump out from the port (right port from the front view) into the port of cylinder (Port side).
This cause the cylinder tube move to the port side, which move the boat to right side (starboard). Oil displaced from the opposite end of the cylinder flows back to the helm pump. For steering in the opposite direction, simply turn the helm pump the other way. When no course corrections are required, the inbuilt lock valve holds the outboard engine stationary.

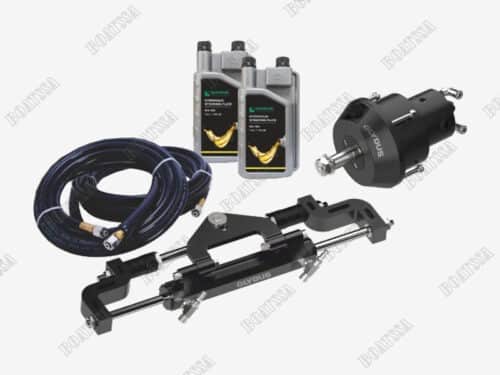

Front Mount Helm Pump 18cc x 1
Front Mount Outboard Cylinder
Hydraulic Oil 1L (SAE NO 15) x 2
Hydraulic Hose 1/4, 6 meter x 2
Washers x 2
Nut x 1
O-Ring x 6
Bleed Tube x 1
Funnel x 1
Oil Supply Tube x 1
